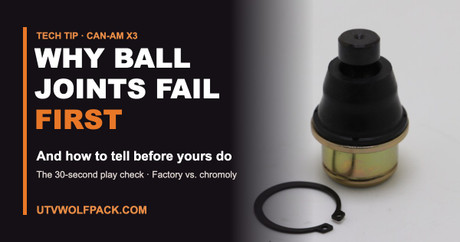

Why Ball Joints Fail First — And How to Tell Before Yours Do

The joint that does three jobs at once

Every other part of your front end has one job. A-arms handle bending. Shocks handle damping. Tie rods handle steering. The ball joint does all three at the same time — it carries the vertical load of the wheel, resists the side load of a rut, and pivots for steering, all through one stud in one housing.

That's why it goes first. Not because it's poorly made, but because it's the one part with nowhere to hide.

How they actually fail

Ball joints rarely snap out of nowhere. They die in a sequence:

• The boot tears — usually a rock strike, sometimes just dry rot.
• Grit gets in — and grease turns into lapping compound.
• Play develops — the stud starts to wallow out its seat.
• The wallow accelerates — now every impact lands as a hammer blow instead of a load.
• The stud pulls through — usually on a landing, usually at the worst possible moment.

The reason it feels sudden is that the first four steps are silent. By the time you hear a clunk over washboard, you're already at step four.

The 30-second check

Get the front wheel off the ground:

• Hands at 12 and 6, rock the tire. Vertical play points at the ball joints.
• Hands at 9 and 3, rock the tire. Horizontal play usually points at tie rod ends or wheel bearings.
• Watch the joint, not the tire. If the stud is moving inside the housing, it's done.

Any visible movement at the stud is a replacement, not a "keep an eye on it."

Factory vs. chromoly

Our X3 joints are 4130 chromoly and carry the Wolfpack Limited Lifetime Warranty — any and all failures, from workmanship to running out of talent, crashes and impacts included. On a first claim the parts are free and you cover shipping.

• Single joint: $48.95
• Complete set — 2 upper + 2 lower: $179.95
• Fitment: Maverick X3, all models 2017–2026, plus Outlander and Renegade 2012–2018
• Shipping: Free 2-day FedEx Express on in-stock orders

FAQ

Do uppers and lowers have to be replaced together?
No — they're different parts, sold separately. But if one has worn out, the other has the same hours on it.

Mine's a 2026. Same part?
Yes. All X3 models, 2017 through 2026.

Does the warranty really cover a crash?
Yes. That's the entire point of it.

Join the Wolfpack

Built in our shop, backed for life. Shop the X3 chromoly ball joints and run the front end you stop thinking about.
